Tube Filtration

Mechanical(Carbon, Sand)Filter Housing

Mechanical(Carbon, Sand)Filter Housing

Model: JTGMF

Brand: JHENTEN

Filter With Pressure

Detail Description

JTGMF Mechanical(Carbon, Sand)Filter Housing is an important part for Pure water preparation early pre-Finish andwater purification system. It is apply to drinking water standard industrial water which is required filtered and general turbidity of treated water is within 5mg/L. It has good remove effect for suspended solids in industrial sewage. The Tablet agglomerated from suspended solids in water which can not remove through Precipitation method, we can through water to filter layer in filter vessel. Finally, to achieve transparency in water.

JTGMF Mechanical(Carbon, Sand)Filter Housing using multichannel polishing processing to ensure the interface surface roughness Ra≤0.4um,compliance with GMP/FDA requirement . All of the surface is mirror polished.

Feature

Barrel's internal and external surface using mirror polish, interface Ra reach to 0.4um close to sanitary level.
The equipment low cost, low Operating cost and easy management.
Reasonable structure design, after Filter material backwashing can use many times, filter material has long service life, effective filtering and small occupation area.


Application

It is used in water Finish, mainly used in turbidity removal, reverse osmosis and The front-end preprocessing of Ion exchange softening desalination system. It also can be used in remove sediment in Surface water and groundwater. The requirement of influent water turbidity should less than 20 degrees, and the turbidity of treated water can below 3 degrees.
Can be widely used in Electronic power, oil chemical industry, metallurgy, electroplating, papermaking, textile, pharmaceutical dialysis, food and beverage, drinking water, Factories in water, swimming pool, etc. To meet the needs of the various industries liquid filtration.


Surface Finish

Finish Type

Mechanical polishing, electrolyticpolishing, sand blasting, pickling

Polishing Precision

Inner surface Ra≤0.4μm ,
Outside surface Ra≤0.6μm.


Operating Conditions

Max Operating Pressure

0.4MPa, 0.6MPa

Max Operating Temp.

120℃

The filter shell adopts:ATM(pressure testwith full water)


Material

Filter shell

304, 316L

Stabilizer blade, sling

304

Connect pipe

304

O-ring

EPDM, PTFE, Viton, Silicone


Connection

In-outlet N1, N2

1”/2”Flange, Tri-clamp,
Thread

Pressure gauge connectionN3, N4

1.5”Screw thread

Vent valve connection N5

1/4”Screw thread

Sight glass connection N6

Flange

Manhole N7

Flange

Packing Hand hole N8

Flange

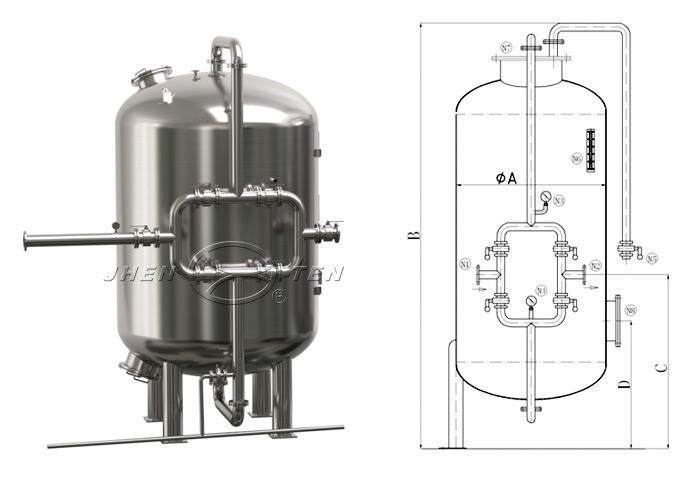

Dimension Parameters

A:Shell diameter

Φ600

Φ800

Φ1000

Φ1200

B:Total height

2350

2600

C:Height from In-outlet to ground

1500

D:Height from packing hand hole to ground

1200

Equipment output,  T/h

1.4~2.8

2.5~5.0

4.0~8.0

5.5~11


A:Shell diameter

Φ1400

Φ1600

Φ1800

Φ2000

2800

1800

1200

7.5.4~15

10~20

13~25

16~30


A:Shell diameter

Φ2500

Φ3000

Φ3200

3000

2000

1200

25~49

35~70

40~80

The above-mentioned data is the standard, it can customize according tocustomer's requirements.


Selection Table


[Shell diameter]

[Shell material]

[In-outlet connection]

[O-ring]

JTGMF

600J

4

K

S


600J=diameterΦ600 mechanical filtration

4=304

F=Flange

E=EPDM


800J

1000J

1200J

1400J

6=316L

K=Tri-clamp

P=PTFE


1600J

1800J

2000J

2500J


L=Screwthread

V=Viton


3000J

3200J





S=Silicone
